點(diǎn)擊圖片查看原圖How To Order
|
How to order
|

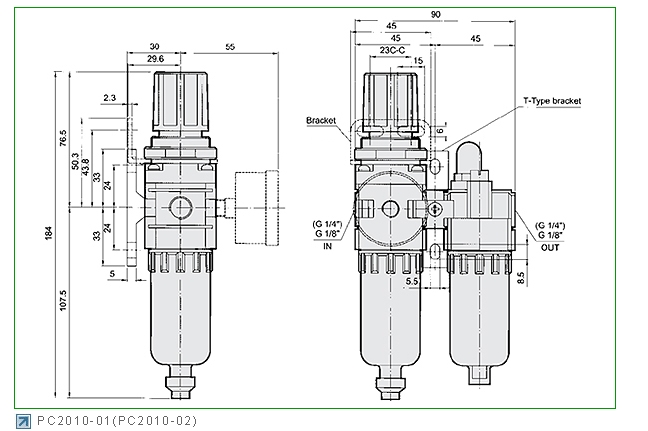

PC2010-01
|
PC2010-02
|
|
|
Component
|
Filter regulator
|
PW2000-01
|
PW2000-02
|
|
Lubricator
|
PL2000-01
|
PL2000-02
|
|
|
Port size
|
G 1/ 8”
|
G 1/ 4”
|
|
|
Max. supply pressure
|
15 kgf/cm 2
|
||
|
Max. operating pressure
|
9.9 kgf/cm 2
|
||
|
Regulating range
|
0.5~8.5 kgf/cm 2
|
||
|
Gauge port
|
G 1/ 8”
|
||
|
Max. flow rate
|
500 Nl/min
|
||
|
Ambient and media temperature
|
5~ 60 ° C
|
||
|
Filtration
|
Standard :5 μ m Option : 2,10 μ m
|
||
|
Recommend oil
|
ISO VG32
|
||
|
Bowl material
|
Polycarbonate
|
||
|
Weight
|
0.42 kg
|
||
Accessories
|
How to order
|
Appellation
|
|
AD62
|
Differential pressure type auto drain
|
|
K40110
|
1/ 8 PT Pressure gauge 0~10bar
|
|
B210I
|
I-Type bracket
|
|
B210T
|
T-Type bracket
|
|
Y20
|
O-Type spacer
|
|
W335
|
Bracket
|
