點擊圖片查看原圖XMF-25DD,XMF-45DD,脈沖閥

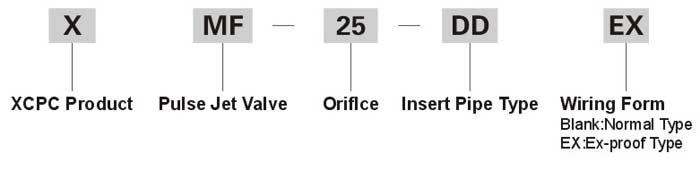

訂購碼
產品規格
|
Model
|
XMF-25DD
|
XMF-45DD
|
|
Working Pressure
|
0.3~0.8MPa
|
|
|
Ambient Temperature
|
-5~55℃
|
|
|
Relatively Humidity
|
＜85%
|
|
|
Working Medium
|
Clean Air
|
|
|
VoItage
|
AC110V/AC220V/DC24V
|
|
|
Diaphragm Life Cycles
|
Over One Million Cycles
|
|
|
Orifice(mm)
|
φ25
|
φ40
|
|
Connection Port
|
φ35
|
φ50
|
外形尺寸
