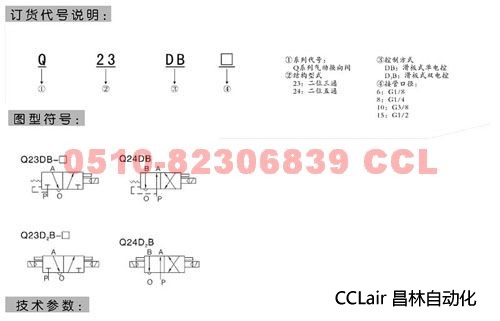

型 號
|
Q23DB-6 Q24DB-6
Q23DB2-6 Q24DB2-6 |
Q23DB-8 Q24DB-8
Q23DB2-8 Q24DB2-8 |
Q23DB-10 Q24DB-10
Q23DB2-10 Q24DB2-10 |
Q23DB-15 Q24DB-15
Q23DB2-15 Q24DB2-15 |
|
工作壓力 (MPa)
|
0.15-0.8
|
|||
|
適用溫度 (°C)
|
-5~50
|
|||
|
公稱通徑
|
6
|
8
|
10
|
15
|
|
流通能力 (mm2)
|
10
|
20
|
40
|
60
|
|
最高換向頻率 (Hz)
|
8
|
8
|
||
|
電壓范圍 (V)
|
AC:220, 110V, 36V; DC: 24, 12V, 電壓波動范圍允許為額定電壓的-15~+10%
|
|||
|
壽命 (萬次)
|
>=300
|
|||
|
螺紋接口
|
G1/8
|
G1/4
|
G3/8
|
G1/2
|
 |
|

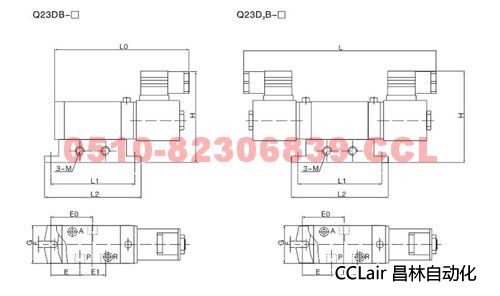

型 號
|
L
|
L0
|
L1
|
L2
|
H
|
E
|
E1
|
E2
|
E3
|
M
|
F
|
G
|
|
Q23DB-6
Q23DB2-6 |
196
|
127.5
|
80
|
92
|
86.7
|
42
|
24.6
|
30.7
|
24.6
|
G1/8
|
6
|
35
|
|
Q23DB-8
Q23DB2-8 |
183
|
127.5
|
80
|
92
|
86.7
|
42
|
24.6
|
30.7
|
24.6
|
G1/4
|
6
|
35
|
|
Q23DB-10
Q23DB2-10 |
210
|
152
|
108
|
130
|
106
|
45
|
34
|
24.5
|
34
|
G3/8
|
9
|
52
|
|
Q23DB-15
Q23DB2-15 |
210
|
152
|
108
|
130
|
106
|
45
|
34
|
24.5
|
34
|
G1/2
|
9
|
52
|
 |
|

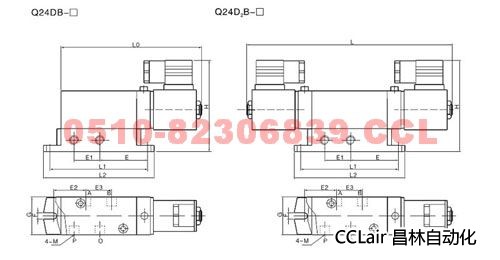

型 號
|
L
|
L0
|
L1
|
L2
|
H
|
E
|
E1
|
E2
|
E3
|
M
|
F
|
G
|
|
Q24DB-6
Q24DB2-6 |
196
|
140
|
86
|
105.5
|
86.7
|
42
|
24.6
|
30.7
|
24.6
|
G1/8
|
6
|
35
|
|
Q24DB-8
Q24DB2-8 |
196
|
140
|
86
|
105.5
|
86.7
|
42
|
24.6
|
30.7
|
24.6
|
G1/4
|
6
|
35
|
|
Q24DB-10
Q24DB2-10 |
210
|
152
|
108
|
130
|
106
|
45
|
34
|
24.5
|
34
|
G3/8
|
9
|
52
|
|
Q24DB-15
Q24DB2-15 |
210
|
152
|
108
|
130
|
106
|
45
|
34
|
24.5
|
34
|
G1/2
|
9
|
52
|
