規格
size |
額定動力矩
Rated Dynamic Torque N.m |
靜力矩
Static Torque N.m |
額定電壓
Rated Voltage DCV |
線圈消耗功率 ( 20 ℃ )
Coil Consumption power ( 20 ℃ ) W |
允許最高轉速
Allowed Max Revolution r/min |
|||
|
離合器
Clutch |
制動器
Brake |
離合器
Clutch |
制動器
Brake |
離合器
Clutch |
制動器
Brake |
|||
|
2
|
20
|
20
|
22
|
22
|
24 |
20
|
20
|
4000
|
|
4
|
40
|
40
|
45
|
45
|
25
|
25
|
40OO
|
|
|
8
|
80
|
80
|
90
|
90
|
36
|
38
|
3000
|
|
|

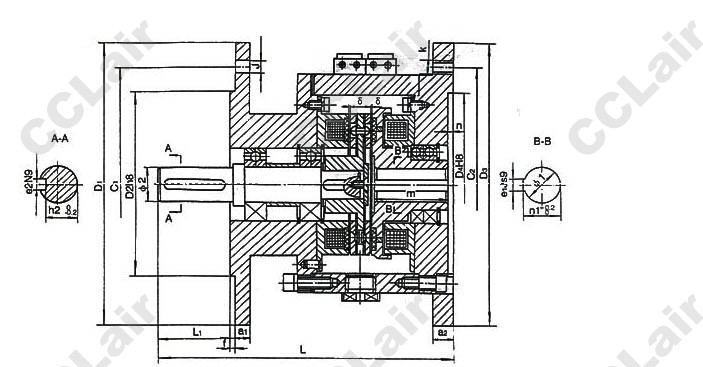

格 |
D1 |
D2 |
D3 |
D4 |
C1 |
C2 |
J |
K |
L |
L1 |
f |
a1 |
a2 |
m |
n |
ф1 |
h1 |
e1 |
φ2 |
h2 |
e2 |
δ |
|
2 |
200 |
130 |
200 |
130 |
165 |
165 |
4—ф11 |
4—M11 |
217.5 |
50 |
3.5 |
10 |
14 |
52 |
4 |
24H7 |
27.3 |
8 |
24h6 |
20 |
8 |
0.2 |
|
4 |
250 |
180 |
250 |
180 |
215 |
215 |
4—ф15 |
4—M12 |
257 |
60 |
4 |
15 |
20 |
65 |
2 |
28H8 |
31.3 |
8 |
28h7 |
24 |
8 |
0.3 |
|
8 |
250 |
180 |
250 |
180 |
215 |
215 |
4—ф15 |
4—M12 |
292 |
60 |
4 |
20 |
25 |
59.5 |
3 |
28H8 |
31.3 |
8 |
28h7 |
24 |
8 |
0.4 |
