點擊圖片查看原圖QTF-M12-10.0,QTF-M12-13.0,QTF-M16-13.0,QTF-M18-13.0,QTF-M16-15.8,QTF-M18-15.8,QTF-M20-15.8,
QTF-M20-18.5,QTF-M22-18.5,QTF-M20-21.2,QTF-M24-21.2,QTF-M25-21.2,QTF-M25-25.0,QTF-M25-28.5,
QTF-M27-28.5,QTF-M30-28.5,QTF-M32-28.5,QTF-M32-34.5,QTF-M36-34.5,QTF-M40-34.5,QTF-M40-42.5,
QTF-M48-42.5,QTF-M50-54.5,QTF-M60-54.5,QTF-PG7-10.0,QTF-PG9-13.0,QTF-PG11-15.8,QTF-PG13.5-18.5,
QTF-PG16-21.2,QTF-PG21-28.5,QTF-PG29-34.5,QTF-PG36-42.5,QTF-PG42-54.5,QTF-PG48-54.5,QTF-G1/4-10.0,
QTF-G3/8-13.0,QTF-G3/8-1.58,QTF-G1/2-1.58,QTF-G1/2-18.5,QTF-G1/2-21.2,QTF-G3/4-21.2,QTF-G3/4-25,
QTF-G3/4-28.5,QTF-G1-34.5,QTF-G1 1/4-42.5,QTF-G1 1/2-54.5,QTF-G2-54.5,
·產品材質:采用UL認可之尼龍PA66(防火等級UL94V-2)制成，(可定制）
·工作溫度:靜態-40℃至100℃，或瞬間可耐熱至120℃;動態-20℃至80℃，或瞬間可耐熱至100℃.
·產品特性:特殊夾緊爪之設計，夾緊浪管抗拉力強，超快速拔插裝卸，提高安裝效率。
·顏色種類:黑色、灰色，其它顏色可定做。

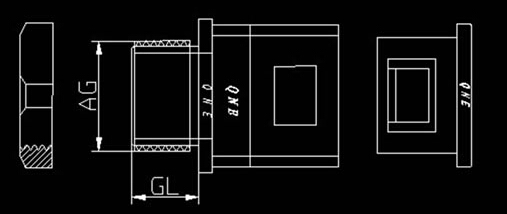

| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑 | 螺紋長度 |
| AD10.0 | QTF-M12-10.0 | M12 x 1.5 | 12 | 8.5 |
| AD13.0 | QTF-M12-13.0 | M12 x 1.5 | 12 | 10 |
| QTF-M16-13.0 | M16 x 1.5 | 16 | 10 | |
| QTF-M18-13.0 | M18 x 1.5 | 18 | 10 | |
| AD15.8 | QTF-M16-15.8 | M16 x 1.5 | 16 | 10 |
| QTF-M18-15.8 | M18 x 1.5 | 18 | 12.5 | |
| QTF-M20-15.8 | M20 x 1.5 | 20 | 12.5 | |
| AD18.5 | QTF-M20-18.5 | M20 x 1.5 | 20 | 12.5 |
| QTF-M22-18.5 | M22 x 1.5 | 20 | 12.5 | |
| AD21.2 | QTF-M20-21.2 | M20 x 1.5 | 20 | 13 |
| QTF-M24-21.2 | M24 x 1.5 | 24 | 13 | |
| QTF-M25-21.2 | M25 x 1.5 | 25 | 13 | |
| AD25.0 | QTF-M25-25.0 | M25 x 1.5 | 25 | 13 |
| AD28.5 | QTF-M25-28.5 | M25 x 1.5 | 25 | 13 |
| QTF-M27-28.5 | M27 x 1.5 | 27 | 13 | |
| QTF-M30-28.5 | M30 x 1.5 | 30 | 13 | |
| QTF-M32-28.5 | M32 x 1.5 | 32 | 13 | |
| AD34.5 | QTF-M32-34.5 | M32 x 1.5 | 32 | 14 |
| QTF-M36-34.5 | M36 x 1.5 | 36 | 14 | |
| QTF-M40-34.5 | M40 x 1.5 | 40 | 14 | |
| AD42.5 | QTF-M40-42.5 | M40 x 1.5 | 40 | 15 |
| QTF-M48-42.5 | M48 x 1.5 | 48 | 15 | |
| AD54.5 | QTF-M50-54.5 | M50 x 1.5 | 50 | 16 |
| QTF-M60-54.5 | M60 x 2.0 | 60 | 16 | |
| AD10.0 | QTF-PG7-10.0 | PG7 | 12.4 | 8.5 |
| AD13.0 | QTF-PG9-13.0 | PG9 | 15.2 | 10 |
| AD15.8 | QTF-PG11-15.8 | PG11 | 18.4 | 12.5 |
| AD18.5 | QTF-PG13.5-18.5 | PG13.5 | 20.4 | 12.5 |
| AD21.2 | QTF-PG16-21.2 | PG16 | 22.5 | 13 |
| AD28.5 | QTF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | QTF-PG29-34.5 | PG29 | 37 | 14 |
| AD42.5 | QTF-PG36-42.5 | PG36 | 47 | 15 |
| AD54.5 | QTF-PG42-54.5 | PG42 | 54 | 16 |
| QTF-PG48-54.5 | PG48 | 59.3 | 16 | |
| AD10.0 | QTF-G1/4-10.0 | G(PF) 1/4 | 13.1 | 8.5 |
| AD13.0 | QTF-G3/8-13.0 | G(PF) 3/8 | 16.6 | 10 |
| AD1.58 | QTF-G3/8-1.58 | G(PF) 3/8 | 16.6 | 12.5 |
| QTF-G1/2-1.58 | G(PF) 1/2 | 20.9 | 12.5 | |
| AD18.5 | QTF-G1/2-18.5 | G(PF) 1/2 | 20.9 | 12.5 |
| AD21.2 | QTF-G1/2-21.2 | G(PF) 1/2 | 20.9 | 13 |
| QTF-G3/4-21.2 | G(PF) 3/4 | 26.4 | 13 | |
| AD25.0 | QTF-G3/4-25 | G(PF) 3/4 | 26.4 | 13 |
| AD28.5 | QTF-G3/4-28.5 | G(PF) 3/4 | 26.4 | 13 |
| AD34.5 | QTF-G1-34.5 | G(PF) 1 | 33.2 | 14 |
| AD42.5 | QTF-G1 1/4-42.5 | G(PF) 1 1/4 | 41.9 | 15 |
| AD54.5 | QTF-G1 1/2-54.5 | G(PF) 1 1/2 | 48 | 16 |
| QTF-G2-54.5 | G(PF) 2 | 60 | 16 |
