STF-M12-10.0,STF-M16-10.0-ST,STF-M16-13.0-ST,STF-M16-13.0,STF-M16-15.8-ST,STF-M16-15.8,
STF-M20-15.8-ST,STF-M20-15.8,STF-M22-15.8-ST,STF-M22-15.8,STF-M25-15.8-ST,STF-M16-18.5-ST,
STF-M16-18.5,STF-M20-18.5-ST,STF-M20-18.5,STF-M22-18.5-ST,STF-M22-18.5,STF-M25-18.5-ST,
STF-M20-21.2-ST,STF-M20-21.2,STF-M25-21.2-ST,STF-M25-21.2,STF-M25-25.0-ST,STF-M25-25.0,
STF-M25-26.2-ST,STF-M25-26.2,STF-M25-28.5-ST,STF-M25-28.5,STF-M32-34.5-ST,STF-M32-34.5,
STF-M40-42.5,STF-M50-42.5,STF-M50-48,STF-M50-54.5,STF-M63-54.5,STF-PG7-10.0,STF-PG9-10.0,
STF-PG11-13.0,STF-PG13.5-15.8,STF-PG16-15.8,STF-PG13.5-18.5,STF-PG16-18.5,STF-PG16-21.2,
STF-PG21-21.2,STF-PG21-26.2,STF-PG21-28.5,STF-PG29-34.5,STF-PG36-42.5,STF-PG42-48,STF-PG48-54.5,
STF-1/4-10.0,STF-PF3/8-13.0,STF-PF1/2-15.8,STF-PF1/2-18.5,STF-PF1/2-21.2,STF-PF3/4-21.2,
STF-PF3/4-26.2,STF-PF3/4-28.5,STF-PF1-34.5,STF-PF1 1/4-42.5,STF-PF1 1/2-54.5,STF-PF2-54.5,
·螺牙規格: 公制牙(Metric)、PG牙、G（PF）牙、NPT牙。

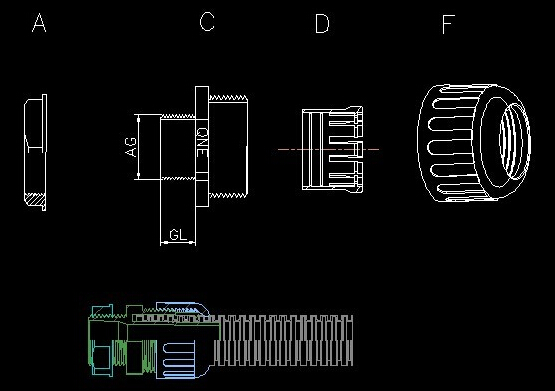

·產品材質: A.C.D.F部分采用UL認可之無鹵素（Halogen-Free）尼龍PA66(防火等級UL94V-2)制成;(可定制UL認可的V-0防火等級尼龍?jiān)?;
·保護等級: IP68
·工作溫度: 靜態-40℃至100℃,或瞬間可耐熱至120℃;動態-20℃至80℃，或瞬間可耐熱至100℃.
·產品特性: 本款高性能抗拉型浪管接頭，適合不同材質，不同硬度浪管
·顏色種類: 黑色、灰色，其它顏色可定做。
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑 | 螺紋長度 |
| AD10.0 | STF-M12-10.0 | M12 x 1.5 | 12 | 9 |
| STF-M16-10.0-ST | M16 x 1.5 | 16 | 10 | |
| AD13.0 | STF-M16-13.0-ST | M16 x 1.5 | 16 | 10 |
| STF-M16-13.0 | M16 x 1.5 | 16 | 15 | |
| AD15.8 | STF-M16-15.8-ST | M16 x 1.5 | 16 | 10 |
| STF-M16-15.8 | M16 x 1.5 | 16 | 15 | |
| STF-M20-15.8-ST | M20 x 1.5 | 20 | 10 | |
| STF-M20-15.8 | M20 x 1.5 | 20 | 15 | |
| STF-M22-15.8-ST | M22 x 1.5 | 22 | 10 | |
| STF-M22-15.8 | M22 x 1.5 | 22 | 15 | |
| STF-M25-15.8-ST | M25 x 1.5 | 25 | 12 | |
| AD18.5 | STF-M16-18.5-ST | M16 x 1.5 | 16 | 10 |
| STF-M16-18.5 | M16 x 1.5 | 16 | 15 | |
| STF-M20-18.5-ST | M20 x 1.5 | 20 | 10 | |
| STF-M20-18.5 | M20 x 1.5 | 20 | 15 | |
| STF-M22-18.5-ST | M22 x 1.5 | 22 | 10 | |
| STF-M22-18.5 | M22 x 1.5 | 22 | 15 | |
| STF-M25-18.5-ST | M25 x 1.5 | 25 | 12 | |
| AD21.2 | STF-M20-21.2-ST | M20 x 1.5 | 20 | 10 |
| STF-M20-21.2 | M20 x 1.5 | 20 | 15 | |
| STF-M25-21.2-ST | M25 x 1.5 | 25 | 10 | |
| STF-M25-21.2 | M25 x 1.5 | 25 | 15 | |
| AD25.0 | STF-M25-25.0-ST | M25 x 1.5 | 25 | 10 |
| STF-M25-25.0 | M25 x 1.5 | 25 | 15 | |
| AD26.2 | STF-M25-26.2-ST | M25 x 1.5 | 25 | 10 |
| STF-M25-26.2 | M25 x 1.5 | 25 | 15 | |
| AD28.5 | STF-M25-28.5-ST | M25 x 1.5 | 25 | 10 |
| STF-M25-28.5 | M25 x 1.5 | 25 | 15 | |
| AD34.5 | STF-M32-34.5-ST | M32 x 1.5 | 32 | 10 |
| STF-M32-34.5 | M32 x 1.5 | 32 | 15 | |
| AD42.5 | STF-M40-42.5 | M40 x 1.5 | 40 | 15 |
| STF-M50-42.5 | M50 x 1.5 | 40 | 15 | |
| AD48 | STF-M50-48 | M50 x 1.5 | 50 | 22 |
| AD54.5 | STF-M50-54.5 | M50 x 1.5 | 50 | 22 |
| STF-M63-54.5 | M63 x 1.5 | 63 | 25 | |
| AD10.0 | STF-PG7-10.0 | PG7 | 12.5 | 9 |
| STF-PG9-10.0 | PG9 | 15.2 | 9 | |
| AD13.0 | STF-PG11-13.0 | PG11 | 18.6 | 10 |
| AD15.8 | STF-PG13.5-15.8 | PG13.5 | 20.4 | 10 |
| STF-PG16-15.8 | PG16 | 22.5 | 10.8 | |
| AD18.5 | STF-PG13.5-18.5 | PG13.5 | 20.4 | 10 |
| STF-PG16-18.5 | PG16 | 22.5 | 10.8 | |
| AD21.2 | STF-PG16-21.2 | PG16 | 22.5 | 13 |
| STF-PG21-21.2 | PG21 | 28.3 | 13 | |
| AD26.2 | STF-PG21-26.2 | PG21 | 28.3 | 13 |
| AD28.5 | STF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | STF-PG29-34.5 | PG29 | 37 | 13 |
| AD42.5 | STF-PG36-42.5 | PG36 | 47 | 13 |
| AD48 | STF-PG42-48 | PG42 | 59.3 | 16 |
| AD54.5 | STF-PG48-54.5 | PG48 | 59.3 | 16 |
| AD10.0 | STF-1/4-10.0 | PF 1/4” | 13.1 | 9 |
| AD13.0 | STF-PF3/8-13.0 | PF 3/8” | 16.6 | 15 |
| AD15.8 | STF-PF1/2-15.8 | PF 1/2” | 20.9 | 15 |
| AD18.5 | STF-PF1/2-18.5 | PF 1/2” | 20.9 | 15 |
| AD21.2 | STF-PF1/2-21.2 | PF 1/2” | 20.9 | 15 |
| STF-PF3/4-21.2 | PF 3/4” | 26.4 | 15 | |
| AD26.2 | STF-PF3/4-26.2 | PF 3/4” | 26.4 | 15 |
| AD28.5 | STF-PF3/4-28.5 | PF 3/4” | 26.4 | 15 |
| AD34.5 | STF-PF1-34.5 | PF 1” | 33.2 | 15 |
| AD42.5 | STF-PF1 1/4-42.5 | PF1 1/4” | 41.9 | 15 |
| AD54.5 | STF-PF1 1/2-54.5 | PF1 1/2” | 48 | 15 |
| STF-PF2-54.5 | PF 2” | 60 | 15 |
