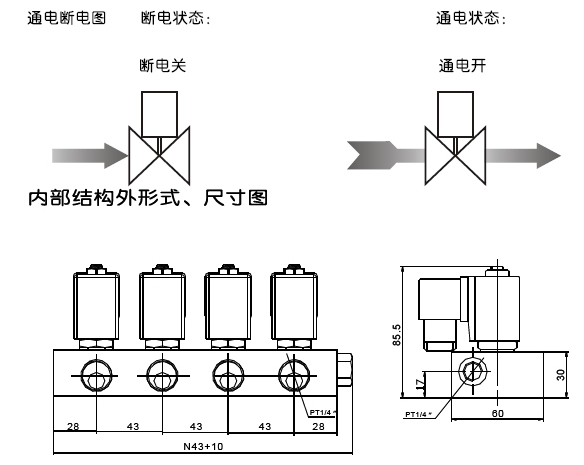

點擊圖片查看原圖二位二通常閉型電磁閥,斷電關閉,通電打開閥體材質為銅,鋁(定制)
環境溫度:0～65℃按閥上所標流向箭頭,一進多路出(N)
電壓:AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允許波動
線圈可配德國原裝NASS線圈
常規備貨:AC220V/230/240V
50/60HZ 22VA 24VA DC24V 13W
型號規格：
|
接管
口徑 |
流量
通徑 mm |
CV值
|
線圈
配置 |
功率
|
線圈
等級 |
訂貨型號以下
表中電壓為 220CAC 50/60HZ |
|
|
VA
|
W
|
||||||
|
AC220V
|
DC24V
|
||||||
| 1/8'' | 2.0 | 0.15 | D | 22 | 13 | F | HTE1DF02V1A02 |
| 3.0 | 0.23 | D | 22 | 13 | F | HTE1DF02V1A03 | |
| 4.0 | 0.44 | D | 22 | 13 | F | HTE1DF02V1A04 | |
| 5.0 | 0.5 | D | 22 | 13 | F | HTE1DF02V1A05 | |
| 1/4'' | 2.0 | 0.15 | D | 22 | 13 | F | HTE1DF02V1B02 |
| 3.0 | 0.23 | D | 22 | 13 | F | HTE1DF02V1B03 | |
| 4.0 | 0.44 | D | 22 | 13 | F | HTE1DF02V1B04 | |
| 5.0 | 0.5 | D | 22 | 13 | F | HTE1DF02V1B05 | |
| 6.0 | 0.8 | D | 22 | 13 | F | HTE1DF02V1B06 | |
| 3/8'' | 5.0 | 0.5 | D | 22 | 13 | F | HTE1DF02V1C05 |
| 6.0 | 0.8 | D | 22 | 13 | F | HTE1DF02V1C06 | |
| 9.0 | 1.65 | D | 22 | 13 | F | HTE1DF02V1C09 | |
| 1/2'' | 5.0 | 0.5 | D | 22 | 13 | F | HTE1DF02V1D05 |
| 6.0 | 0.8 | D | 22 | 13 | F | HTE1DF02V1D06 | |
| 9.0 | 1.65 | D | 22 | 13 | F | HTE1DF02V1D09 | |
HTE系列線圈參數表：
|
線圈型式和編號
|
電壓
|
功率
|
所配電磁閥 |
||||
|
50HZ VA
|
60HZ VA
|
直流
|
|||||
|
起動
|
保持
|
起動
|
保持
|
W
|
|||
|
D04-3101 |
AC220V
|
55
|
22
|
55
|
22
|
----- |
HTE常閉系列
|
|
D04-3102 |
AC110V
|
55
|
22
|
55
|
22
|
||
|
D04-3104 |
AC24V
|
45
|
18
|
45
|
18
|
||
|
D04-3106 |
DC24V
|
----------------------------------------------- |
13
|
||||
|
D04-3107 |
DC12V
|
13
|
|||||
HTE1DF02V1B03,HTE1DF02V1B05,HTE1DF02V1B06,HTE1DF02V1C06,
HTE1DF02V1C09,HTE1DF02V1D05,HTE1DF02V1D06,HTE1DF02V1D09,
