點擊圖片查看原圖HTF-12,HTF-15,HTF-25,
規格特點：
二□二位式常閉型電磁閥，閥體為聚四氟乙?。ㄋ芰贤酰┲谱?，膜片材料氟橡膠四氫，介質和其它配件隔離，因此可用強酸、強堿性流體和超凈介質等
配管方式可任意安裝，介質流向和閥上箭頭保持一致，為增長壽命最好是不平安裝
采用一次性開閥形式，隔離式密封結構，泄漏量為零。
技術參數：
| 公稱通徑 |
2
|
3
|
4
|
6
|
8
|
10
|
12
|
15
|
20
|
25
|
| 工作壓差 |
0.2MPa
|
0～0.1MPa
|
0～0.05MPa
|
|||||||
| 功率消耗 |
4.5W
|
15W
|
50W
|
|||||||
| 連接方式 |
管接M8?
|
G3/8"
|
G1/2"
|
G1/2"
|
G3/4"
|
G1"
|
||||
| 電源電壓 |
AC220V DC24V 其它定做
|
|||||||||
| 介質溫度 |
0～60℃ -10～160℃
|
|||||||||

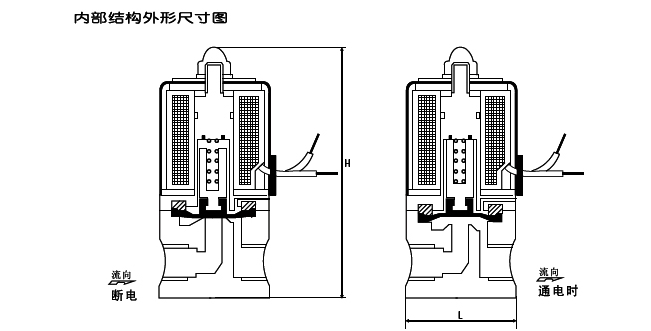

| L（mm） |
38
|
50
|
65
|
85
|
85
|
|||||
| H（mm） |
62
|
110
|
125
|
145
|
150
|
|||||
結構規格參數：
|
型號
|
長
|
流量孔徑
|
密封材料 | 閥體材料 |
備注
|
| HTF-2 | M8X1 | 2 |
TEFLON
|
TEFLON | |
| HTF-3 | 3 |
TEFLON
|
TEFLON | ||
| HTF-4 | 4 |
TEFLON
|
TEFLON | ||
| HTF-6 | 3/8" | 6 |
VITON
|
TEFLON | |
| HTF-8 | 3/8" | 8 |
VITON
|
TEFLON | |
| HTF-10 | 3/8" | 10 |
VITON
|
TEFLON | |
| HTF-15 | 1/2" | 15 |
VITON
|
TEFLON | |
| HTF-20 | 3/4" | 20 |
VITON
|
TEFLON | |
| HTF-25 | 1" | 25 |
VITON
|
TEFLON |
