產品詳情

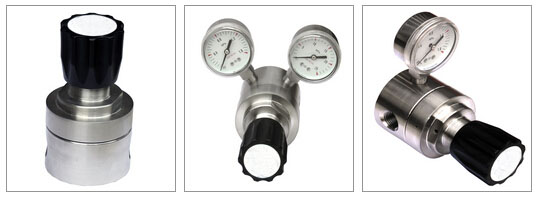

HYR12系列不銹鋼減壓器，單級式膜片減壓結構，不銹鋼膜片壓力傳輸，輸出壓力穩定，適用于純凈氣體、標準氣體、腐蝕性氣體，液體等。
設計特點：
單級式減壓結構
母體與膜片采用硬密封形式
母體螺紋：進出氣接口1/2" NPT（F），
壓力表，安全閥接口1/4〞NPT（F）
內設過濾網
可采用面板式或墻式安裝
適用范圍：
實驗室
氣體吹掃系統
腐蝕性氣體、特種氣體
氣體匯流排
測試設備
特性參數：
最大輸入壓力:500，3000 Psig
輸出壓力:0～25，0～50，0～100，
0～125，0～250 Psig
安全測試壓力:1.5 倍的最大輸入壓力
適用溫度:-40°F 至＋165°F (-40℃ 至＋74℃)
內泄漏率:2×10-8 atm cc/sec He
C v 值:1.1
材質：
母 體:316L,Brass
上 蓋:316L,Brass
膜 片:316L
過濾網:316L(10μm)
閥 座:PCTFE,PTFE
彈 簧:316L
閥芯頂桿:316L
重量： 1.6KG
HYR12LADGP03,HYR12LADGP04,HYR12LADGP05,HYR12LADGP12,HYR12LADGP13,HYR12LADGW02,HYR12LADGW03,
HYR12LADGW04,HYR12LADGW05,HYR12LADGW12,HYR12LADGW13,HYR12LADHG02,HYR12LADHG03,HYR12LADHG04,
HYR12LADHG05,HYR12LADHG12,HYR12LADHG13,HYR12LADHP02,HYR12LADHP03,HYR12LADHP04,HYR12LADHP05,
HYR12LBFLP02,HYR12LBFLP03,HYR12LBFLP04,HYR12LBFLP05,HYR12LBFLP12,HYR12LBFLP13,
HYR12LBFLW02,HYR12LBFLW03,HYR12LBFLW04,HYR12LBFLW05,HYR12LBFLW12,HYR12LBFLW13,
HYR12LDDGG02,HYR12LDDGG03,HYR12LDDGG04,HYR12LDDGG05,HYR12LDDGG12,HYR12LDDGG13,HYR12LDDGP02,
HYR12LJFKW12,HYR12LJFKW13,HYR12LJFLG02,HYR12LJFLG03,HYR12LJFLG04,HYR12LJFLG05,HYR12LJFLG12,
HYR12LJFLG13,HYR12LJFLP02,HYR12LJFLP03,HYR12LJFLP04,HYR12LJFLP05,HYR12LJFLP12,HYR12LJFLP13,
HYR12LJFLW02,HYR12LJFLW03,HYR12LJFLW04,HYR12LJFLW05,HYR12LJFLW12,HYR12LJFLW13,
HYR12LMDGG02,HYR12LMDGG03,HYR12LMDGG04,HYR12LMDGG05,HYR12LMDGG12,HYR12LMDGG13,HYR12LMDGP02,
HYR12LMDGP03,HYR12LMDGP04,HYR12LMDGP05,HYR12LMDGP12,HYR12LMDGP13,HYR12LMDGW02,HYR12LMDGW03,
HYR12BDDKW12,HYR12BDDKW13,HYR12BDDLG02,HYR12BDDLG03,HYR12BDDLG04,HYR12BDDLG05,HYR12BDDLG12,
HYR12BDDLG13,HYR12BDDLP02,HYR12BDDLP03,HYR12BDDLP04,HYR12BDDLP05,HYR12BDDLP12,HYR12BDDLP13,
HYR12BDDLW02,HYR12BDDLW03,HYR12BDDLW04,HYR12BDDLW05,HYR12BDDLW12,HYR12BDDLW13,
HYR12BDFGG02,HYR12BDFGG03,HYR12BDFGG04,HYR12BDFGG05,HYR12BDFGG12,HYR12BDFGG13,HYR12BDFGP02,
HYR12BJDLG13,HYR12BJDLP02,HYR12BJDLP03,HYR12BJDLP04,HYR12BJDLP05,HYR12BJDLP12,HYR12BJDLP13,
HYR12BJDLW02,HYR12BJDLW03,HYR12BJDLW04,HYR12BJDLW05,HYR12BJDLW12,HYR12BJDLW13,
HYR12BJFGG02,HYR12BJFGG03,HYR12BJFGG04,HYR12BJFGG05,HYR12BJFGG12,HYR12BJFGG13,HYR12BJFGP02,
HYR12BMDKP05,HYR12BMDKP12,HYR12BMDKP13,HYR12BMDKW02,HYR12BMDKW03,HYR12BMDKW04,HYR12BMDKW05,
HYR12BMDKW12,HYR12BMDKW13,HYR12BMDLG02,HYR12BMDLG03,HYR12BMDLG04,HYR12BMDLG05,HYR12BMDLG12,
HYR12BMDLG13,HYR12BMDLP02,HYR12BMDLP03,HYR12BMDLP04,HYR12BMDLP05,HYR12BMDLP12,HYR12BMDLP13,
