點擊圖片查看原圖DLDT7系列套筒式電磁離合器(為整體組裝)

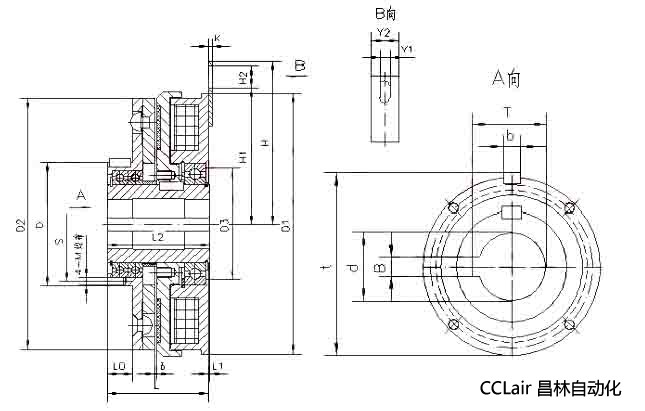

外型及安裝尺寸
|
規(guī)格/Nm |
D1 |
D2 |
D3 |
d |
B |
T |
D |
b |
t |
L |
L0 |
L1 |
L2 |
K |
Y1 |
Y2 |
H |
H1 |
H2 |
S |
M |
δ |
|
-5 |
70 |
63 |
32 |
12 |
4 |
13.8 |
38 |
4 |
39.5 |
44 |
12.5 |
0 |
44 |
2 |
4.5 |
14 |
50 |
35 |
9.5 |
34 |
M3深4 |
0.2 |
|
-10 |
88 |
80 |
38 |
15 |
5 |
17.3 |
48 |
6 |
50.5 |
47 |
12 |
0 |
48 |
2 |
6.5 |
16 |
63 |
48 |
11.5 |
42 |
M4深6 |
0.2 |
|
-20 |
108 |
100 |
48 |
20 |
6 |
22.8 |
60 |
6 |
62.5 |
57.5 |
16 |
1 |
56 |
2 |
6.5 |
16 |
73 |
58 |
11.5 |
54 |
M4深6 |
0.2 |
|
-40 |
133 |
125 |
55 |
25 |
8 |
28.3 |
70 |
8 |
73 |
65 |
17.5 |
0.5 |
65 |
2 |
6.5 |
16 |
85 |
70 |
11.5 |
62 |
M4深6 |
0.4 |
|
-50 |
143 |
135 |
55 |
25 |
8 |
28.3 |
70 |
8 |
73 |
66.5 |
17.5 |
0.5 |
66 |
2 |
6.5 |
16 |
90 |
75 |
11.5 |
62 |
M4深6 |
0.4 |
|
-80 |
168 |
160 |
70 |
30 |
8 |
33.3 |
95 |
8 |
98 |
63 |
19 |
1 |
74 |
3 |
8.5 |
25 |
111 |
88 |
18.5 |
88 |
M5深8 |
0.4 |
|
-100 |
188 |
180 |
80 |
35 |
10 |
38.3 |
95 |
8 |
98 |
80 |
21 |
1 |
81 |
3 |
8.5 |
25 |
121 |
98 |
18.5 |
88 |
M5深8 |
0.4 |
|
-160 |
210 |
200 |
90 |
40 |
12 |
43.3 |
108 |
10 |
111 |
86 |
21 |
2.5 |
88 |
3 |
8.5 |
25 |
133 |
110 |
18.5 |
100 |
M5深8 |
0.5 |
|
-220 |
240 |
230 |
90 |
40 |
12 |
43.3 |
108 |
10 |
111 |
90 |
21 |
1.5 |
91 |
3 |
8.5 |
25 |
148 |
125 |
18.5 |
100 |
M5深8 |
0.5 |
|
-320 |
270 |
260 |
115 |
50 |
14 |
53.8 |
128 |
12 |
131 |
104 |
26 |
1.5 |
105 |
4 |
10.5 |
28 |
169 |
141 |
22.5 |
118 |
M8深10 |
0.6 |
|
-480 |
295 |
285 |
115 |
50 |
14 |
53.8 |
128 |
12 |
131 |
109 |
26 |
0.5 |
109 |
4 |
10.5 |
28 |
181 |
153 |
22.5 |
118 |
M8深10 |
0.6 |
|
-1000 |
410 |
400 |
190 |
80 |
22 |
85.4 |
200 |
14 |
203.5 |
139 |
36 |
0 |
138 |
5 |
12.5 |
32 |
250 |
212 |
26.5 |
190 |
M8深10 |
0.7 |
